High Temperature Deep groove ball bearing
SKU: AD-066
| Component category | Mechanical |
Deep groove ball bearing
NOTE: THIS HIGH TEMP BEARING NEEDS TO GREASED REGULARLY WITH AF-013
Single row deep groove ball bearing heat stabilised up to at least 120 °C (250 °F). The use of the correct lubricant is crucial in ensuring the optimal performance of bearings and preventing their failure. A high temperature grease, operate as a thin film that protects the components of the bearing.
NO LONGER IN USE WITH THE HOT ROLL IN 810 AND 812 - REPLACED BY AD-074

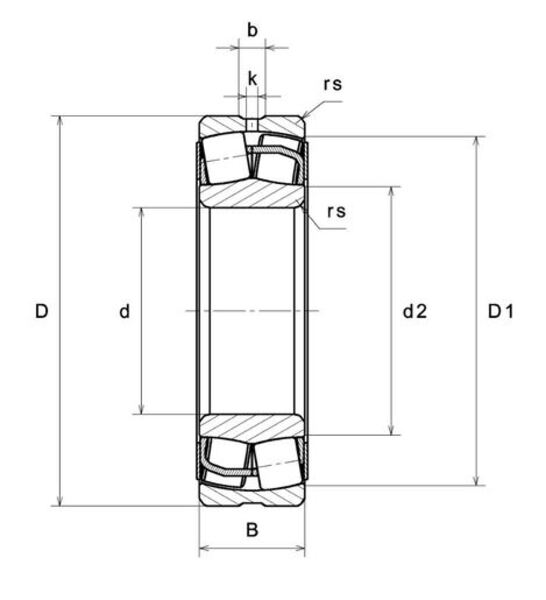

DIMENSIONS
 |
d | 50 mm | Bore diameter |
|---|---|---|---|
| D | 90 mm | Outside diameter | |
| B | 23 mm | Width | |
| d1 | ≈62.51 mm | Shoulder diameter | |
| D2 | ≈81.61 mm | Recess diameter | |
| r1,2 | min.1.1 mm | Chamfer dimension |
