Mid range distance sensor

Main Category: Lava
SKU: CG-094
Ask about this product
Component category
  • Electrical
, Electrical
− +

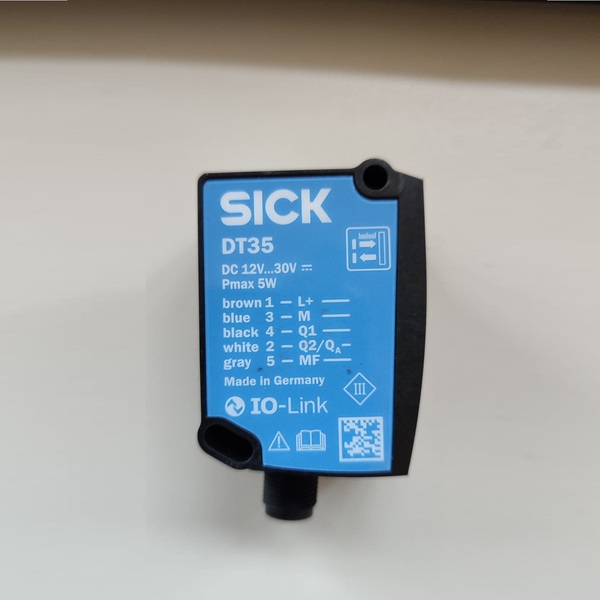

Mid range distance sensor

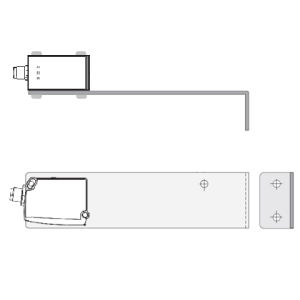

If used as a direct replacement for CG-083 (in any machine originally fitted with CG-083) you need to install the retrofit kit CG-900

812 V3 Ref D1

General data

Measuring range

50 mm ... 12,000 mm, 90 % remission 1) 2)

50 mm ... 5,300 mm, 18 % remission

50 mm ... 3,100 mm, 6 % remission
Target Natural objects
Resolution 0.1 mm
Repeatability ≥ 0.5 mm 2) 3) 4)
Accuracy Typ. ± 10 mm 4)
Response time 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms 5) 6)
Switching frequency 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz 5) 6)
Output time 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms 5) 7)
Light source Laser, infrared 8)
Infrared light
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014)
Typ. light spot size (distance) 15 mm x 15 mm (at 2 m)
Additional function Set speed: Super Fast ... Super Slow, teach-in of analog output and invertible analog output, Output Q2 adaptable: Current output / Voltage output / Digital output, Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in of digital output and digital output invertible, Multifunctional input: laser off / external teach / deactivated, reset to factory default
Average laser service life (at 25 °C) 100,000 h
  • 1) For speed setting Slow.
  • 2) See repeatability characteristic lines.
  • 3) Equivalent to 1 σ.
  • 4) 6 % ... 90 % remission.
  • 5) Depending on the set speed: Super Fast ... Super Slow.
  • 6) Lateral entry of the object into the measuring range.
  • 7) Continuous change of distance in measuring range.
  • 8) Wavelength: 827 nm, max. output: 130 mW, pulse duration: 3.5 ns, duty cycle: 1/250.
