| Component category | Electrical |
| Component type | Lamp |

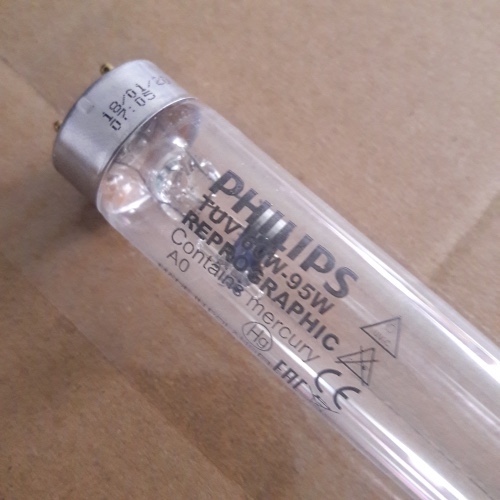

BOX of 25 Lamp UVC TUV 60-95W
TUV T8 lamps are double-ended UVC (germicidal) lamps. TUV T8 lamps offer almost constant UV output over their complete lifetime, for high system efficacy. Moreover, they have a long and reliable lifetime, which allows maintenance to be planned for in advance.
EVO 4 LF - Light-Finisher 23 lamps Ref. TC1-23
EVO 4 DLF Light-Finisher 23 lamps Ref. TC1-23
EVO 4 ELF Light-Finisher 23 lamps Ref. TC1-23
EVO 4 EDLF - Light-Finisher 23 lamps Ref. TC1-23
EVO 5 LF - Light-Finisher 29 lamps Ref. TC1-29
EVO 5 DLF - Light-Finisher 29 lamps Ref. TC1-29
620 Ref.
830 Ref.
Net Weight (Piece) 135.000 g
Dimensions
A (max) 1500.0 mm
B (max) 1507.1 mm
B (min) 1504.7 mm
C (max) 1514.2 mm
D (max) 28 mm
Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Main Application Disinfection
Useful Life (Nom) 8000 h
---
Color Code TUV
Color Designation N-A
Depreciation at useful lifetime 10 %
---
Power (Nom) 95 W
Lamp Current (Nom) 0.620 A
Voltage (Nom) 124 V
Approval and Application
Mercury (Hg) Content (Nom) 8.0 mg
---
UV-C Radiation 100Hr (IEC) 22.5 W
