BOX of 25 UVA Lamps

Main Category: Evo
SKU: CF-002
Ask about this product
Component categoryElectrical
Component typeLamp
− +

BOX of 25 PHILIPS Lamp UVA TL 80W 10R

Also a replacement for CF-014

Please carefully check if your EVO 3 ELF or EDLF exposing unit is fitted with 60W (CF-001) or 80W (CF-002) UVA Lamps.

Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands – between 350 and 400 nm – and have peak intensity at 370 nm . This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the ‘R’ lamps in the family have an internal 200-degree reflector to further optimize the lamp’s overall efficiency.

Information below pertains to unit using 80W Lamps.

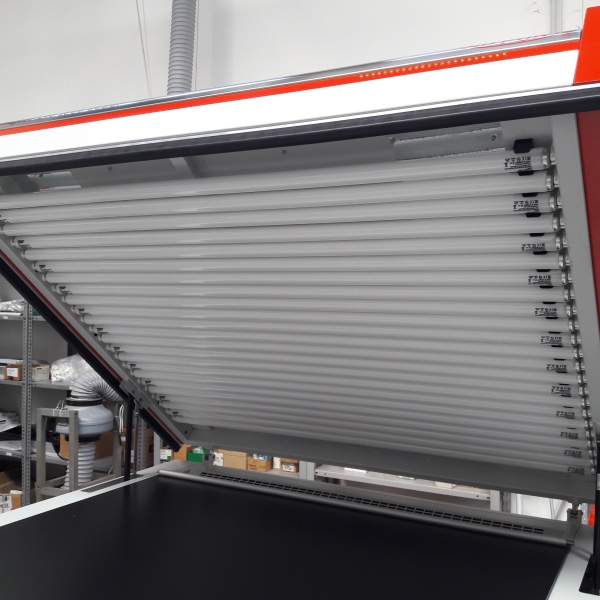

EVO 3 ELF  Expo 23 lamps Ref. TM1-23

EVO 3 EDLF - Expo 23 Lamps Ref. TM1-23

EVO 4 E - Expo 42 lamps Ref. E1-42

EVO 4 ELF - Expo 42 lamps Ref. E1-42 Light-Finisher 24 Lamps Ref. TA1-24

EVO 4 EDLF - Expo 42 lamps Ref. E1-42 Light-Finisher 24 Lamps Ref. TA1-24

EVO 4 DLF - Light-Finisher 24 Lamps Ref. TA1-24

EVO 4 LF - Light-Finisher 24 Lamps Ref. TA1-24

EVO 5 LF - Light-Finisher 30 Lamps Ref. TA1-30

EVO 5 DLF - Light-Finisher 30 Lamps Ref. TA1-30



620 (in place of CF-014)

830 (in place of CF-014)

Net Weight (Piece)     331.000 g

Dimensions

A (max) 1500 mm

B (max) 1507.1 mm

B (min) 1504.7 mm

C (max) 1514.2 mm

D (max) 40.5 mm

Cap-Base         G13  [ Medium Bi-Pin Fluorescent]

Main Application        Reprography (R)

Life to 50% Failures (Nom)     1000 h

Useful Life (Nom)        1000 h

---

Color Code      10-R

Color Designation       Ultra Violet A

Chromaticity Coordinate X (Nom)      222

Chromaticity Coordinate Y (Nom)      210

UV Depreciation at 500 h       10 %

UV Depreciation at 1000 h     20 %

UV Depreciation at 2000 h     30 %

---

Power (Nom)  80 W

Lamp Current (Nom)   0.83 A

Voltage (Nom) 110 V

Approval and Application

Mercury (Hg) Content (Nom) 13.0 mg

---

UV-B/UV-A (IEC)         0.1 %

UV-A Radiation 100Hr (IEC)    20.5 W
