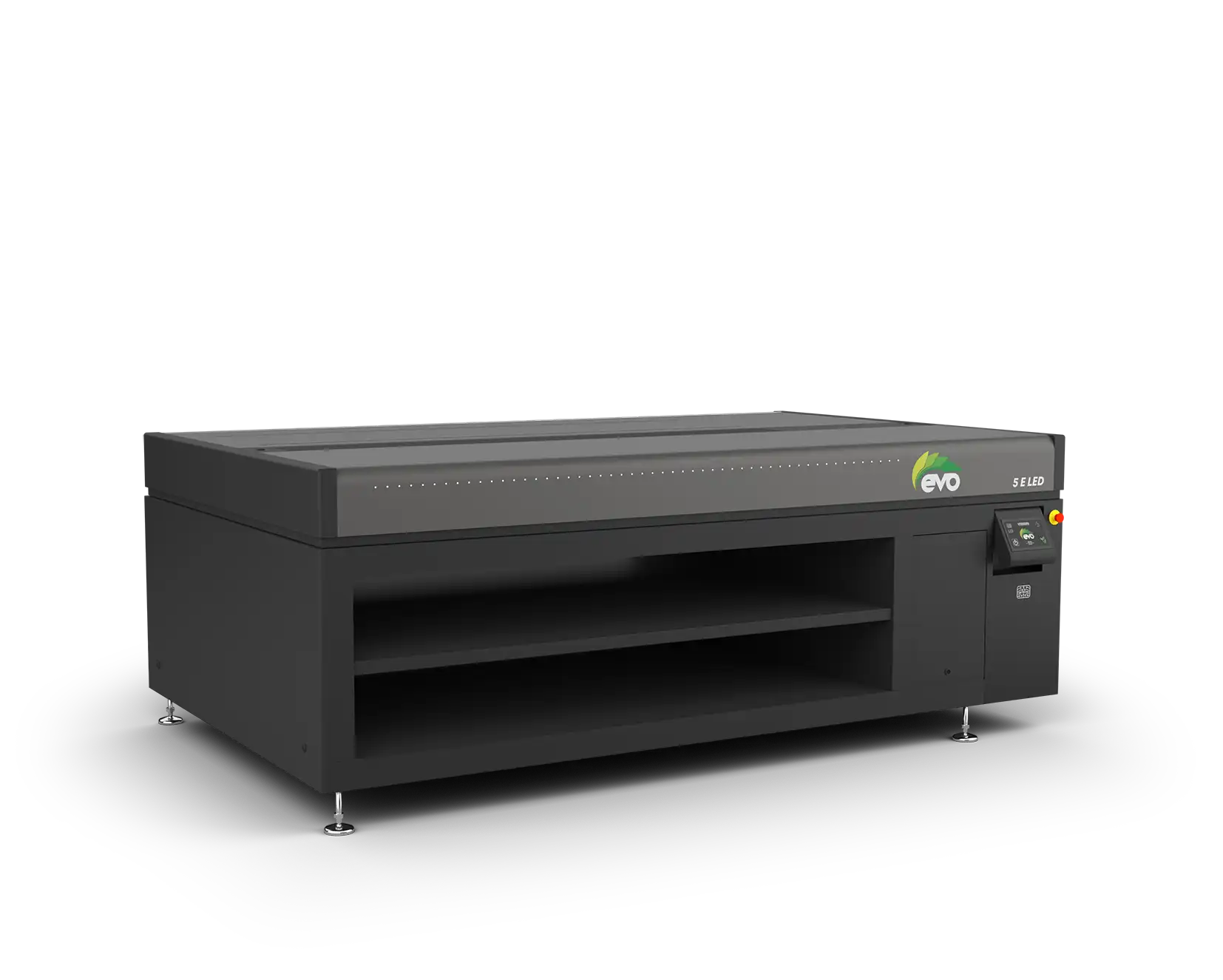

EVO5 E LED

The Evo LED is Vianord’s newest exposure technology. Operating at low temperatures, it eliminates all heating-related issues, ensuring consistency and lamps longevity. It also delivers an adjustable output of absolute precision. For plates up to 132 x 203 cm (52 x 80 inches)

Encumbrance

Evo Common Features

  • Remote access (optional)
  • Active component visualisation during the process
  • Manual function to run the components separately (Service only)
  • Plate process parameters memory (up to 24 channels)
  • Factory Settings Reset Option
  • Programmable switch off

HI-TECH Features

  • Larger Control Panel
  • New UI: Simple, clear, intuitive
  • Smarter and energy-efficient Design
  • Secure data & parameters backup and quick recovery option

Exposure LED

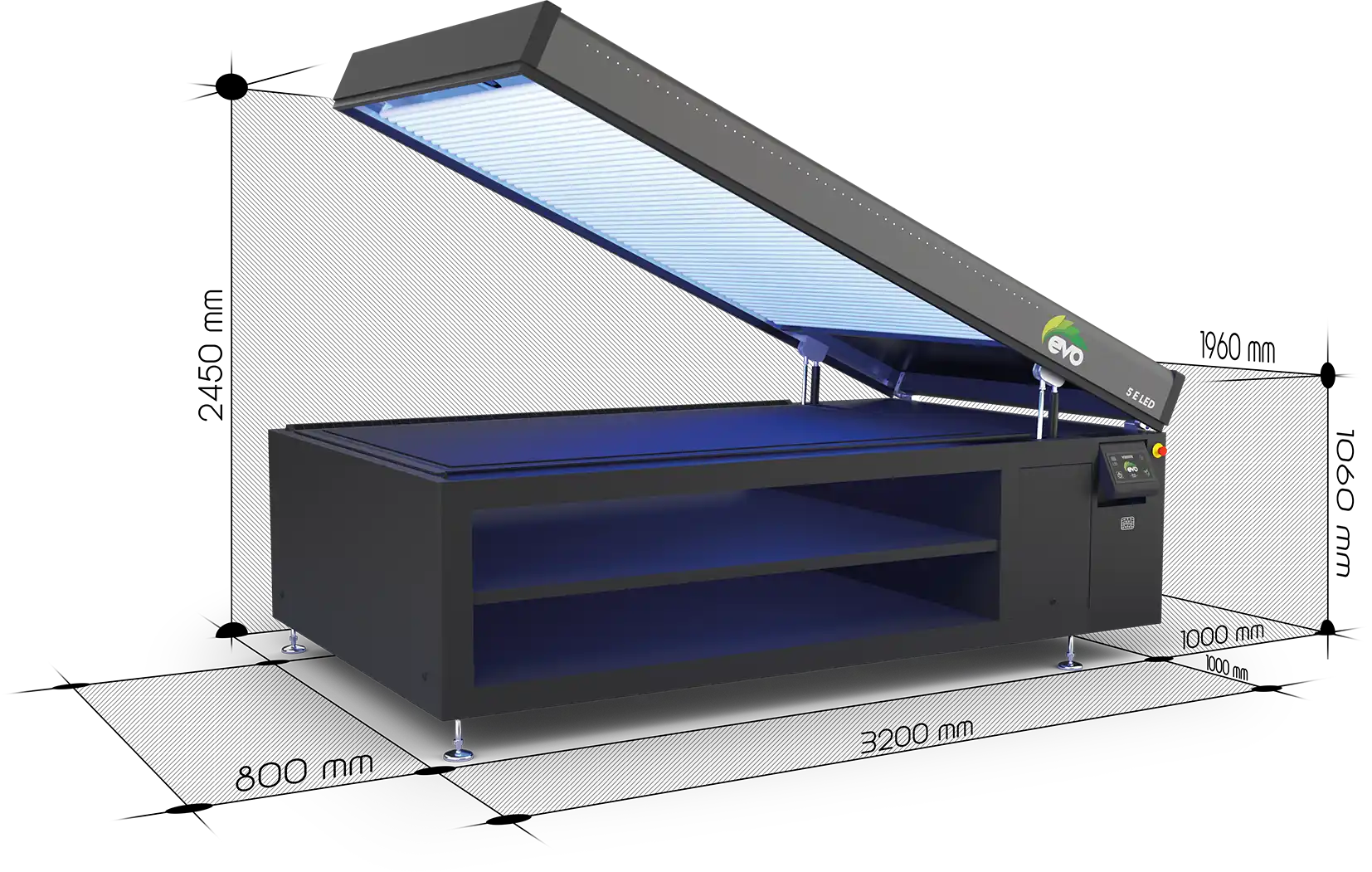

  • Clamshell design with automatic pneumatic lid
  • Patented LED tubes
  • Cool operation, maximizing LED longevity and stability
  • Absolute repeatability and control
  • Ready-to-use programs for specific plates
  • Adjustable intensity for diverse needs
  • Centralized, intelligent management system
  • Faster exposure with enhanced stability and consistency
  • Single lamp replacement without UV intensity mismatch

General Features

This PLC controlled, stand-alone exposure unit is specifically designed for high quality digital and conventional photopolymer plates for flexible printing applications (e.g. wide web).

CE Certification

The  equipment is designed and manufactured according to the EEC safety and health standards, as specified in the Type Examination Certificate No. MA19-0042548-01 (309) issued by IMQ spa – Via Quintiliano 43 – 20138 Milan ITALY, and on the basis of the verifications carried out according to the essential requirements of the Directive 2006/42/EC, the system respects and is in compliance with all the applicable points.

Stress-Accumulation
Early-Warning

The system provides Early Alerts when the time to replace an over-stressed part, causing too much risk, has come. This innovative function allows users to intentionally replace parts that are tired, aged, and degraded just before they fail. More than one hundred parts, critical to the uptime of the system, have been identified and data relative to their maximum-lifetime-expectationstored in the software.

Remote Diagnostics

Remote-Monitoring and Remote-Diagnostics (to be purchased separately); The concept of automation symbolises high quality and productivity, so ensuring you experience minimal downtime, for Vianord is essential. For that reason, this EVO system may be fitted with an Industrial VPN Gateway with dedicated hardware designed to offer Vianord Certified Engineers remote access, across the Intern et. This innovative system will help you keep uptime high, maintenance costs low, and extend the system’s useful life.

System Dimensions (net)

320 x 196 x 106 cm  w/Lid open 245 cm

126 x 77.1 x 41.7 inch  w/Lid open 96.5 inch

System Weight (net)

920 Kg (2024 lb)

Packing Dimensions

Light Packing on Pallets is preferred and recommended when the system requires a full truckload and is shipped just within Europe. Dimensions: 340 x 210 x 135 cm (138 x 82.7 x 53.1”)

Industrial Wooden Crates are favoured if the system must withstand multiple transhipments during transport and is mandatory when shipped outside the continent. Dimensions: 348 x 212 x 149 cm (173 x 83.5 x 59.0”)

The dimensions mentioned above are for reference only; packaging dimensions may vary depending on the packing company hired for the job.

Packing Weight

Light Packing on Pallets: 1150kg (2535Ib)

Industrial Wooden Crates: 1350Kg (2976Ib)

The weights mentioned above are for reference only; packaging weight may vary depending on the packing company hired for the job.

Mains Electricity

Power Supply (field configurable)
360 / 440 Volt – 50 / 60 Hz - 3Ph / N / PE
207 / 243 Volt – 50 / 60 Hz - 3Ph / PE

Current (nominal load)
11 A (360/440 Volt configuration)
19 A (207/243 Volt configuration)

Power Rating (nominal)
7 Kw

Connecting Wires
5 x 4 mm2 (360/440 Volt configuration)
4 x 6 mm2 (207/243 Volt configuration)

Grounding

< 0.1 Ω

Compressed Air Supply

To perform to the best of its possibilities, the system requires a continuous and stable supply of compressed air at a pressure of at least 7 bar (101.5 psi) and not more than 10 bar (145 psi), with pressure dew point 3°C and max. residual intake oil content of < 0.01 mg/m3. Consider also an average consumption of 70 l/hr. The system installation kit includes a 5-meter - Ø 6mm air connecting pipe for push-in fitting.

Working Environment

The system should be installed in a clean, constant-temperature and constant-humidity pre-printing environment with a temperature between 18 and 26°C (64.4 and 78.8°F) and a non-condensing relative humidity in the range of 40 to 60%. To maintain such environmental standards an efficient heating/cooling and ventilating system may be required.

System Colour

Vianord offers all equipment in standard powder coating Vianord Black.

In addition, Vianord offers numerous ways you can personalize your system. In fact, Vianord offers the best customization options in the industry! This allows you to showcase your brand and company’s spirit in ways other companies can’t offer. You can choose your personal colour and have your logo, company name, or slogan pop.
